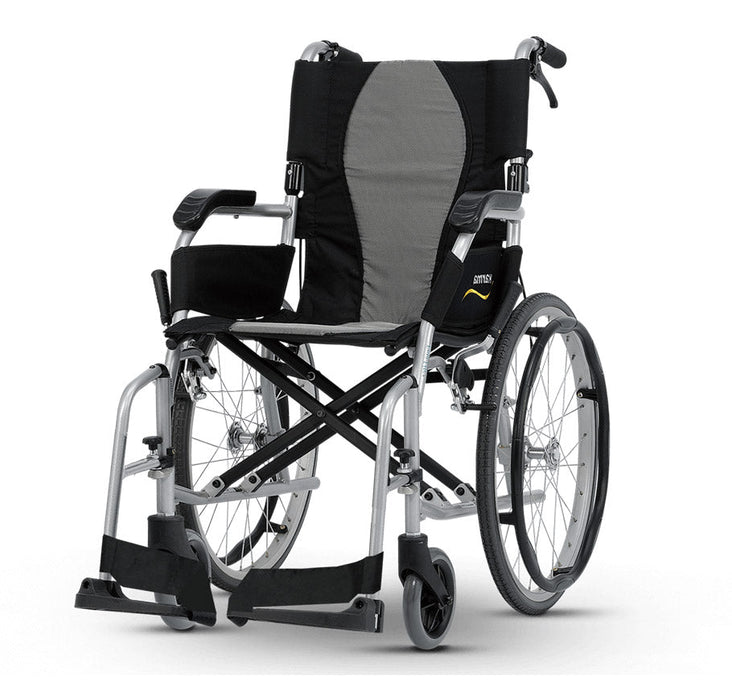

Ergo Lite 2 Self Propel Wheelchair - 18" Seat

by Karma

Original price £408.25 - Original price £489.90
Original price
£408.25
£408.25 - £489.90
Current price £408.25

The Ergo Lite 2 is an ultralight aluminium wheelchair with the ergonomic features of the Ergo Lite. Transfer easily in and out of the wheelchair with the detachable swing-away footrest.

Features & Benefits

  • AEGIS Microbe Shield permanently bonded antimicrobial barrier.
  • Swing in/out detachable footrest.
  • Fold-able backrest and frame for effortless storage and transportation.
  • Desk-length padded armrests.
  • Attendant brakes.
  • Comfortable & durable upholstery.
  • 20” Quick release spoke rear wheels.

Product Specification

Type Self Propelled
Nominal Seat Width 18"
Total Product Weight 10.9kg
Weight of Heaviest Part
6.7kg (20" Quick Release Wheels)
9.8kg (20" Fixed Rear Wheels)
Maximum user weight 100kg
Overall length with legrest 930mm
Overall Width 645mm
Overall Height 900mm
Folded Length 695mm
Folded Width 295mm
Folded Height 710mm
Caster x Rear wheel size 6" x 20"
Handrim diameter 430mm
Horizontal location of axle 5mm
Minimum turning radius 840mm
Minimum turning radius without user 760mm
Pivot width 1180mm
Static stability downhill 17.9°
Static stability uphill 10.1°
Static stability uphill with anti-tippers 11.4°
Static stability sideways 14.3°
Seat plane angle
Effective Seat Depth 430mm
Nominal Seat Depth 420mm
Effective Seat Width 450mm
Seat Surface Height at Front Edge 480mm
Backrest angle 11°
Seat to Backrest Angle 96°
Backrest Height 420°
Leg to Seat Surface Angle 102°
Footrest to seat distance 360-410mm
Armrest to seat distance 215mm
Front Location of Armrest Structure 310mm
